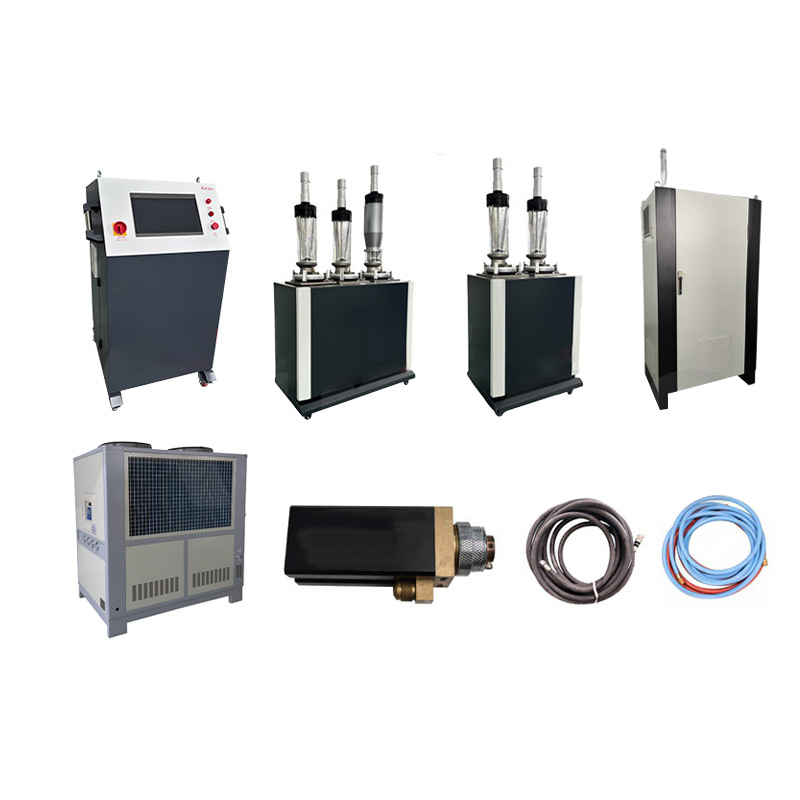

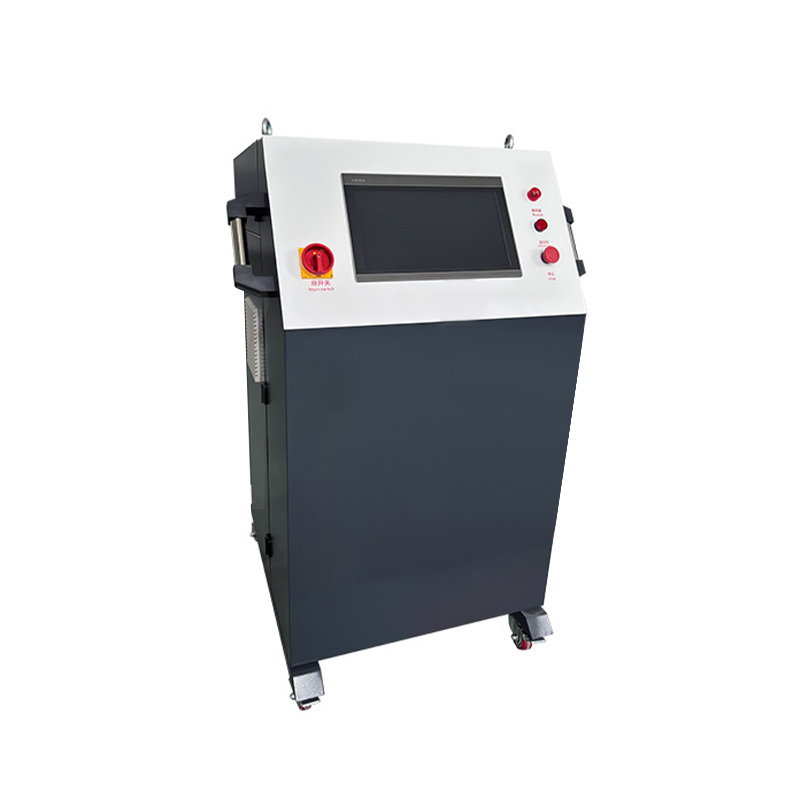

Plasma spraying system control cabinet CY-180

The CY-180 control cabinet adopts the cutting-edge touch control terminal, simplifying the original button operation method. The CY-180 control cabinet is the control center of the CY-180 plasma spraying system, which uses advanced technology to automate the entire CY-180 spraying system. All gases are controlled by a closed-loop mass flow meter, which solves the problem of unstable pressure and flow rate during operation, resulting in varying plasma flame flow and voltage, thereby stabilizing the output power. The CY-180 control cabinet adopts a touch control terminal, which can record and save the parameters of spraying different powders in the form of formulas, and record them.

Control cabinet parameter table：

 CY-180 Powder feeder for plasma spraying system：

　The CY-180 supersonic high-speed flame spraying powder feeder is a device used to store spraying powder and deliver it to the spray gun according to process requirements. Nitrogen gas is used as the powder feeding gas, and the sprayed powder is transported to the outlet of the powder feeder through the atomization vibration of the powder feeding gas. It leaves the powder feeding bucket together with the powder feeding gas and enters the spray gun. Adjust the speed of powder feeding through the touch screen of the control cabinet.

CY-180 Parameters of powder feeder for supersonic spraying equipment ：

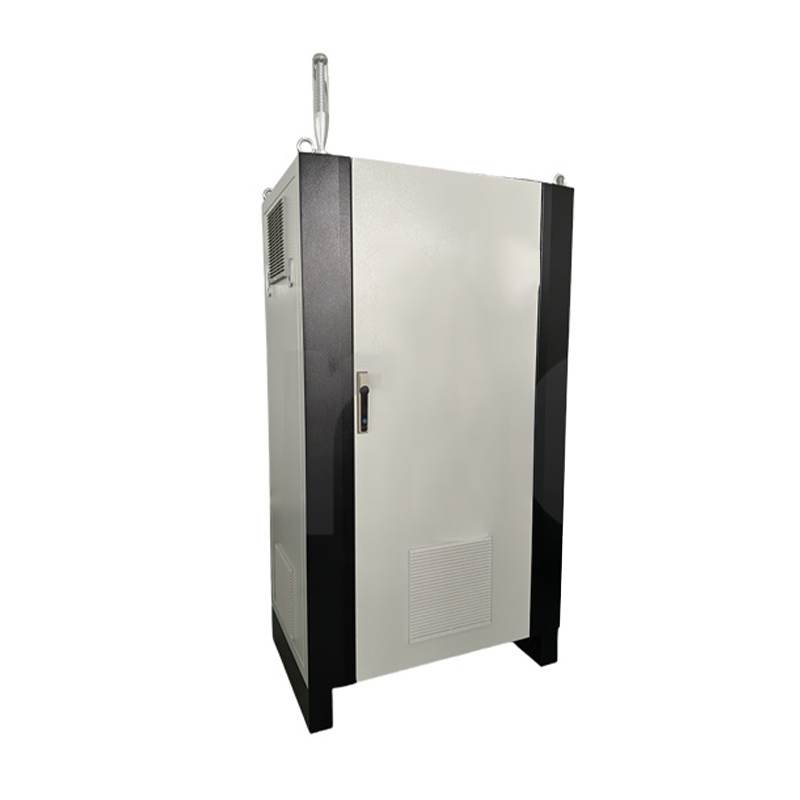

CY-180 Power supply for plasma spraying system：

　　The plasma inverter power supply provides DC power for the spray gun, using IGBT modules, intelligent module control, water-cooled electrical modules, soft arc starting, small size, high efficiency, low power consumption, good heat dissipation, continuous operation, and low failure rate. It is currently an excellent plasma power supply in China.

CY-180 Plasma power supply parameters：

CY-180 Cooling system for plasma spraying equipment：

　　The dual compressor drive reduces the overall volume of the machine and increases your space; Mainly used to achieve effective cooling of the spray gun and prolong the nozzle life.

Cooling system for plasma spraying equipment：

CY-180 Plasma spraying system spray gun：

　The CY F6MB plasma spraying equipment is equipped with a gun for production type thermal spraying operations, with a maximum output power of 180KW. This type of spray gun has a high rated power and belongs to an internal powder feeding device. Therefore, in production environments, high powder feeding rated power can be used to shorten spraying time and reduce processing costs. The standard structure allows for quick hardware replacement. Various nozzles, electrodes, and powder ports are available to meet the requirements of spraying different materials.

CY—F6MB Parameter table of plasma spraying system spray gun：

 Water cable：

　　Made with imported PVC from Italy, with a burst pressure of 60 kg, a working pressure of 20 kg, a maximum working DC current of 1000A, a rated current of 800A, and a working water temperature of 55 ° C; Can work continuously for a long time.
