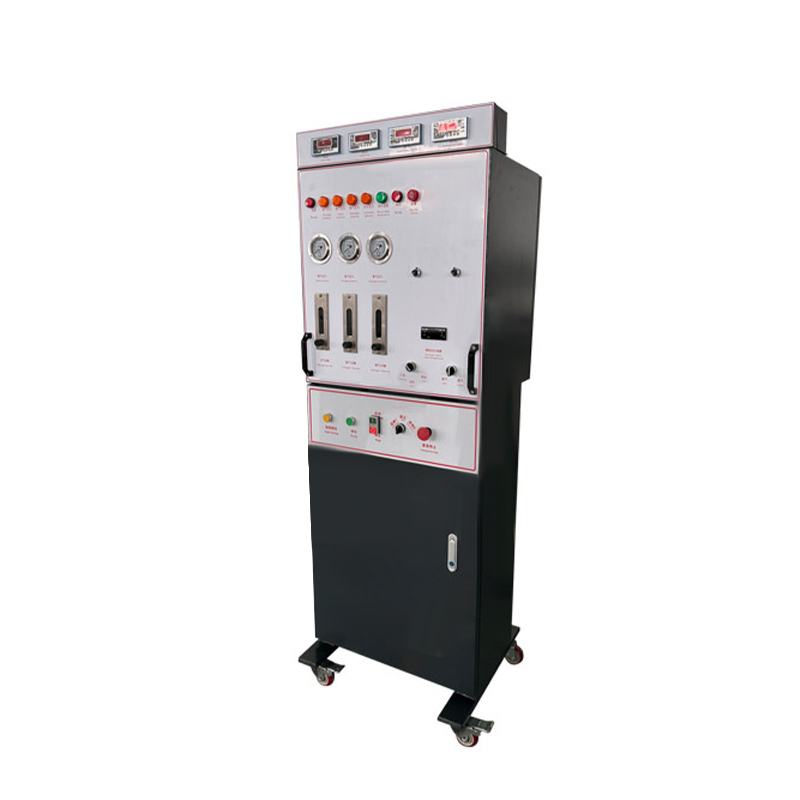

Plasma spraying equipment control cabinet CY-100

The CY-100 control cabinet adopts the cutting-edge touch control terminal, simplifying the original button operation method. The CY-100 control cabinet is the control center of the CY-100 plasma spraying system, which uses advanced technology to automate the entire CY-100 spraying system. All gases are controlled by a closed-loop mass flow meter, which solves the problem of unstable pressure and flow rate during operation, resulting in varying plasma flame flow and voltage, thereby stabilizing the output power. The CY-100 control cabinet adopts a touch control terminal, which can record and save the parameters of spraying different powders in the form of formulas, and record them.

Control cabinet parameter table：

 CY-100 Powder feeder for plasma spraying equipment：

　　The powder feeder of CY-100 supersonic spraying equipment is a device used to store spraying powder and deliver it to the spray gun according to process requirements. Nitrogen gas is used as the powder feeding gas, and the sprayed powder is transported to the outlet of the powder feeder through the atomization vibration of the powder feeding gas. It leaves the powder feeding bucket together with the powder feeding gas and enters the spray gun. The speed of powder feeding can be adjusted by adjusting the touch screen of the control cabinet.

CY-100 Powder feeder for supersonic spraying equipment parameter：

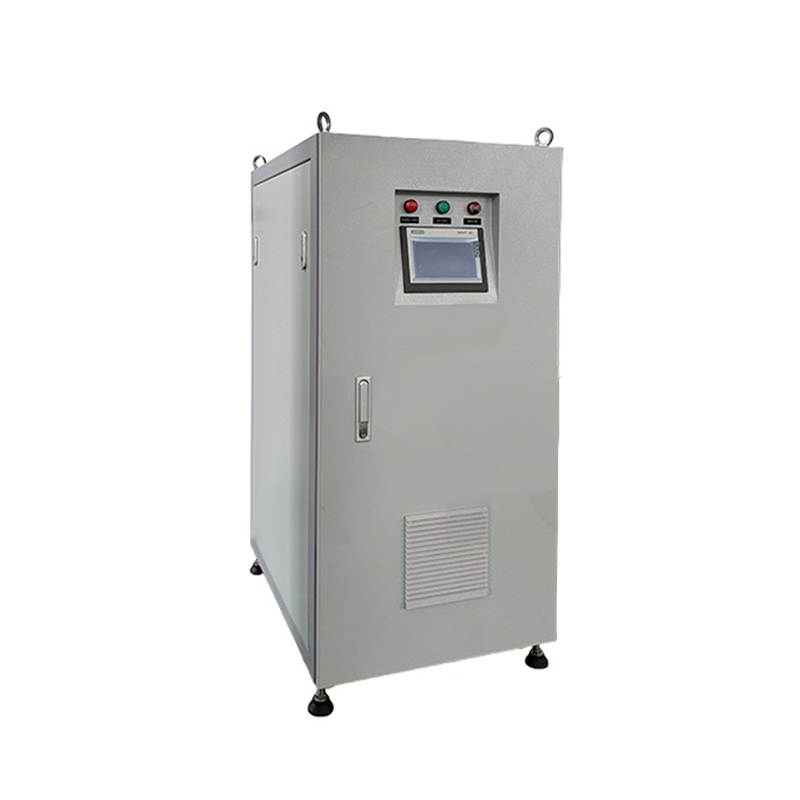

 CY-100 plasma power：　　

　　The plasma inverter power supply provides DC power for the spray gun, using IGBT modules, intelligent module control, water-cooled electrical modules, soft arc starting, small size, high efficiency, low power consumption, good heat dissipation, continuous operation, and low failure rate. It is currently an excellent plasma power supply in China.

CY-100 Plasma power supply parameters

 Water and electricity transfer box：　　

　　Mix the water and electricity of the plasma equipment and send it to the spray gun. At the same time, provide the high-frequency pulse voltage required for the spray gun to start the arc and detect the return water temperature and cooling water pressure of the spray gun. It is lightweight, flexible, and easy to drag. Good arc initiation performance, reducing the instantaneous current shock when the nozzle starts an arc.

CY-100 Parameter Table of Plasma Spray System Transfer Box

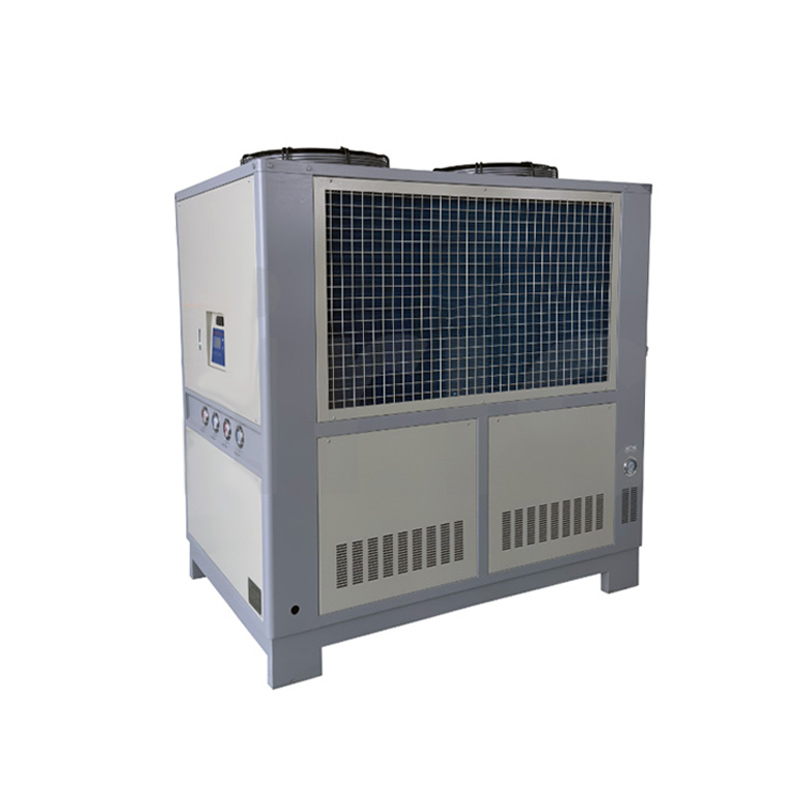

 Cooling system for plasma spraying equipment：　　

　　The dual compressor drive reduces the overall volume of the machine and increases your space; Mainly used to achieve effective cooling of the spray gun and prolong the nozzle life.

Parameters of cooling system for plasma spraying equipment：

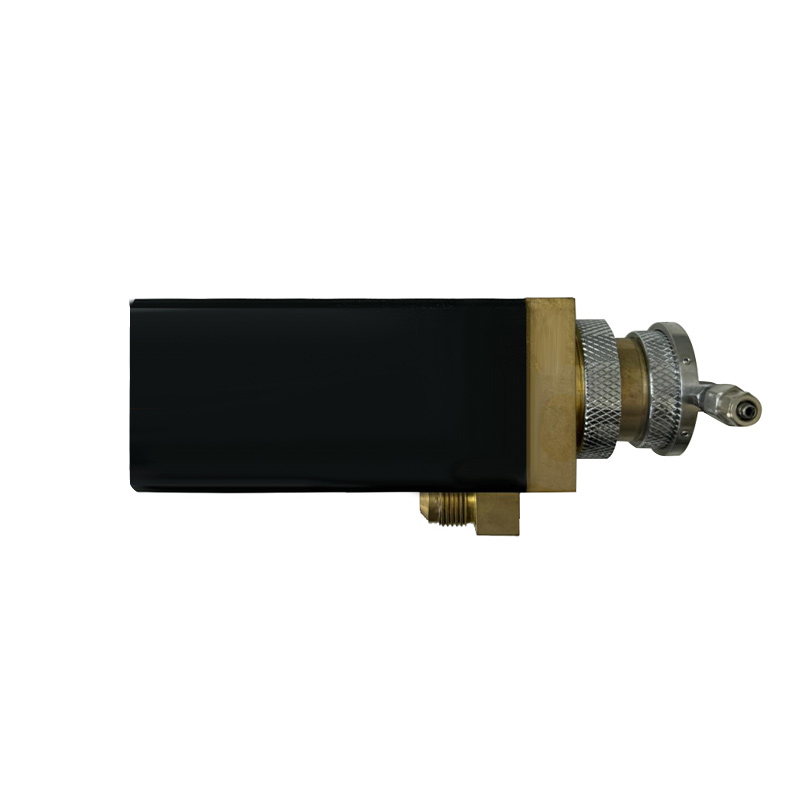

 CY-F4MB Plasma spraying equipment machine gun：

　　　The CY-F4MB plasma spraying equipment is equipped with a gun for production type thermal spraying operations, with a maximum output power of 80KW. This type of spray gun has a high rated power, so it can use a high powder feeding rated power in production environments, shorten spraying time, and reduce processing costs. The standard structure allows for quick hardware replacement. Various nozzles, electrodes, and powder ports are available to meet the requirements of spraying different materials.

CY-F4MB Parameter table of plasma spraying system spray gun：

 Water cable：

　　Made with imported PVC from Italy, with a burst pressure of 60 kg, a working pressure of 20 kg, a maximum working DC current of 1000A, a Rated current of 800A, and a working water temperature of 55 ° C; Can work continuously for a long time.
